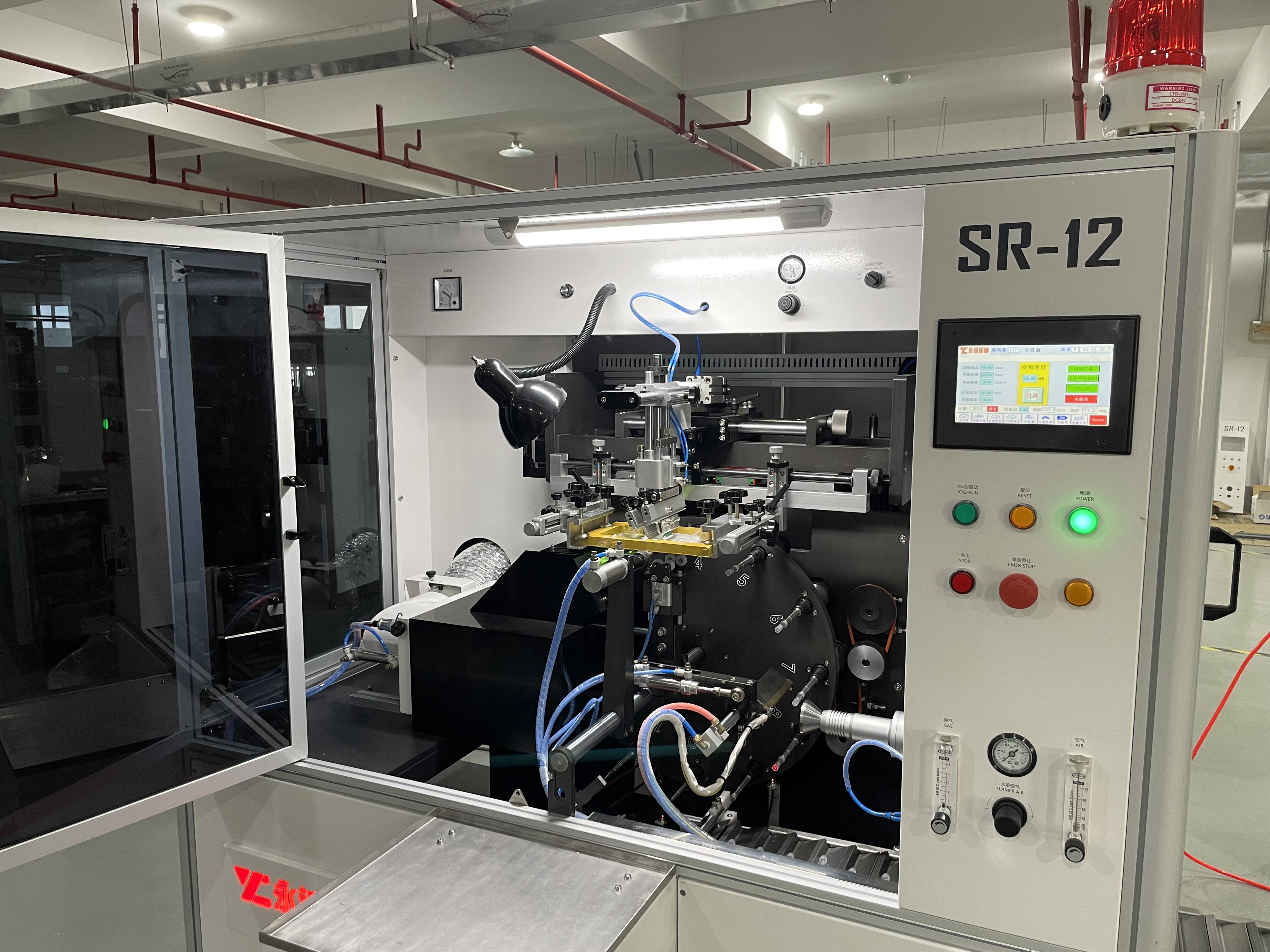

YC-SR12 Monochrome Fully Automatic Circular Screen Printing Machine
Designed for screen printing on cylindrical product surfaces.
- ●Designed for screen printing on cylindrical products.

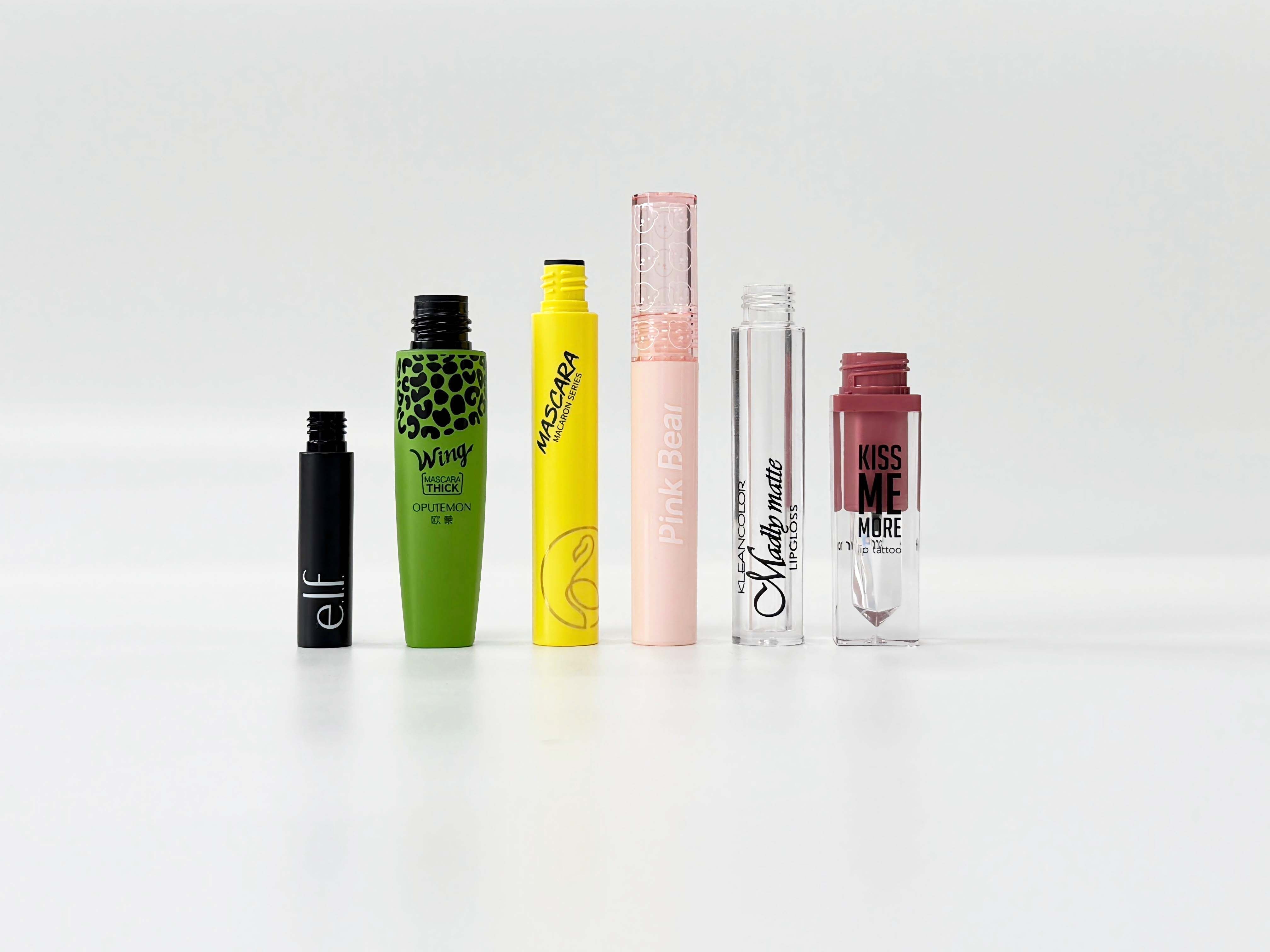

- ●Suitable for printing on various products including eyebrow pencils, lip glosses, tubes, and jars.

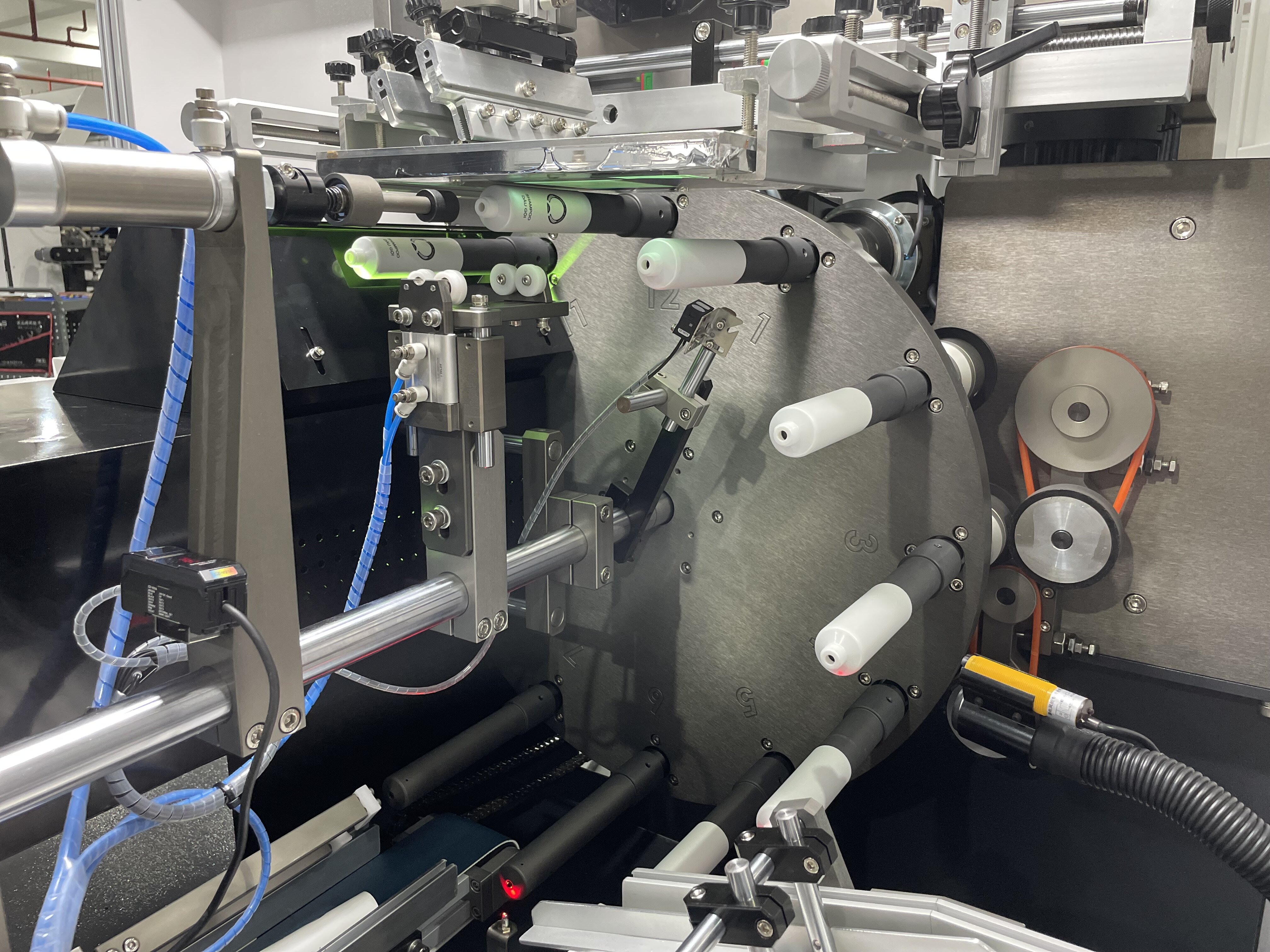

- ●Features a vertical rotary table mechanism driven by an intermittent precision cam indexer and integrated with a PLC-based intelligent control system.
- ●The screen printing unit features servo control for easy calibration, smooth operation, and reliable performance.
- ●Equipped with an electrostatic dust collector; surface treatment options include flame or plasma processing.
- ●The ink curing system uses water-cooled LED lamps, with traditional mercury (Hg) UV lamps available as an option.
- ●Can be equipped with color mark or vision positioning systems to meet registration printing requirements.
技术参数 TECHNICAL PARAMETERS
| 型号 Model | YC-SR12 | ||||
| 颜色 Number of colors | 单色 1-color | ||||
| 最大丝印面积 Max. Screen Printing Area | 160mm×250mm | ||||
| 最大丝印网框尺寸 Max. Screen Frame Size | 450mm×250mm | ||||
| 承印物尺寸范围 Min. and max. Substrate Size | 直径 Diameter：Ø6mm-Ø80mm 长度 Length：20mm-200mm | ||||
| 最快印刷速度 Max. Printing Speed | 60pcs/min* | ||||
| 气源要求 Compressed Air Pressure | 6 bar（75L/min） | ||||
| 电源要求 Power Requirement | 380V 3phase 50/60Hz 5KW* | ||||
| 机器重量 Weight | 1100KG | ||||
