YC-AS/1 Model Single-Color Fully Automatic Servo Screen Printing Machine
Single-color screen printing for the surfaces of bottles, jars, and various containers.
- ●Compatible with cylindrical, oval, square, and other product shapes for broad adaptability and versatility.
- ●Equipped with parameter visualization and quick changeover to enable efficient automated production.
- ●Single-station swing-open design with full servo control.

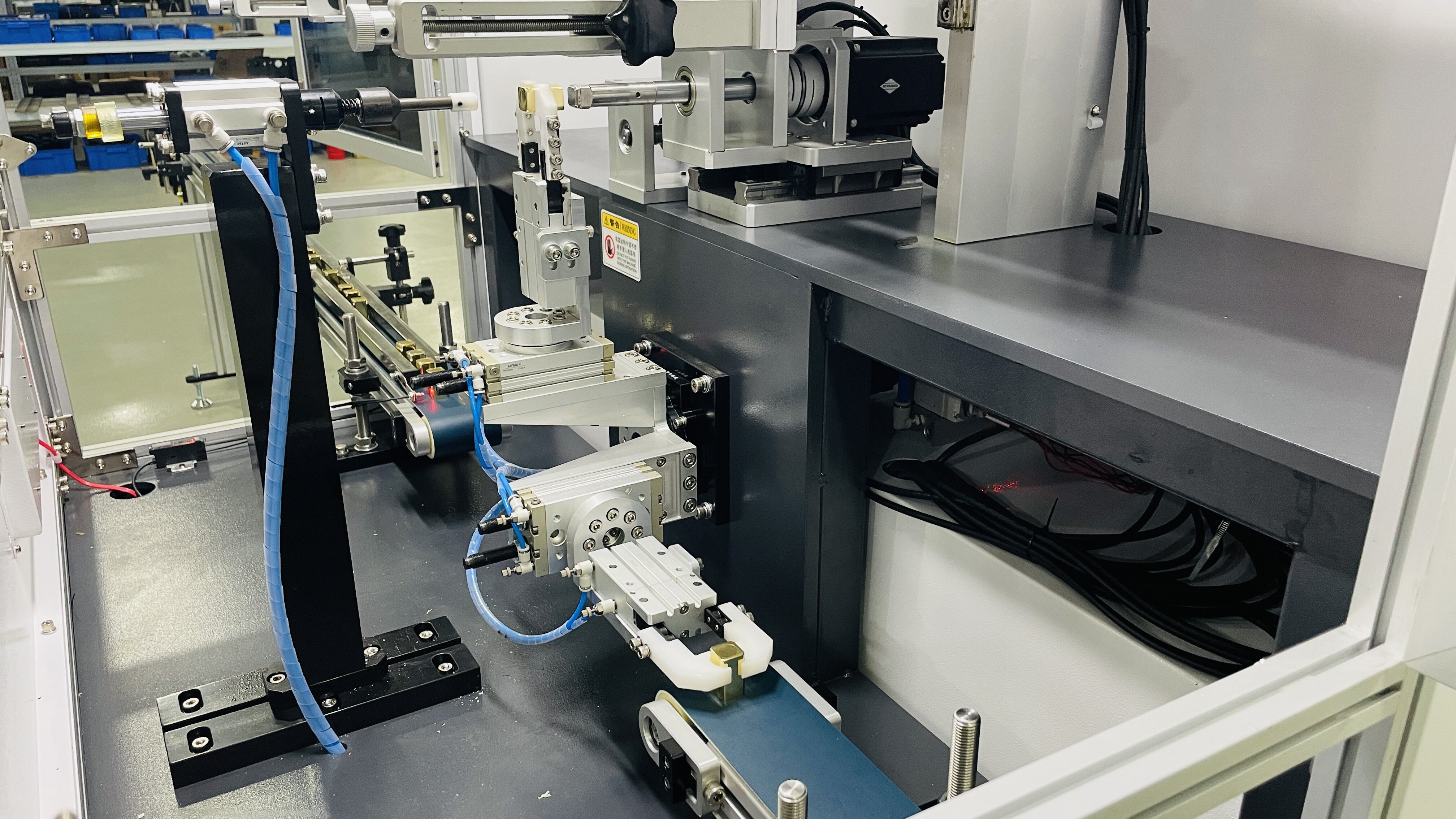

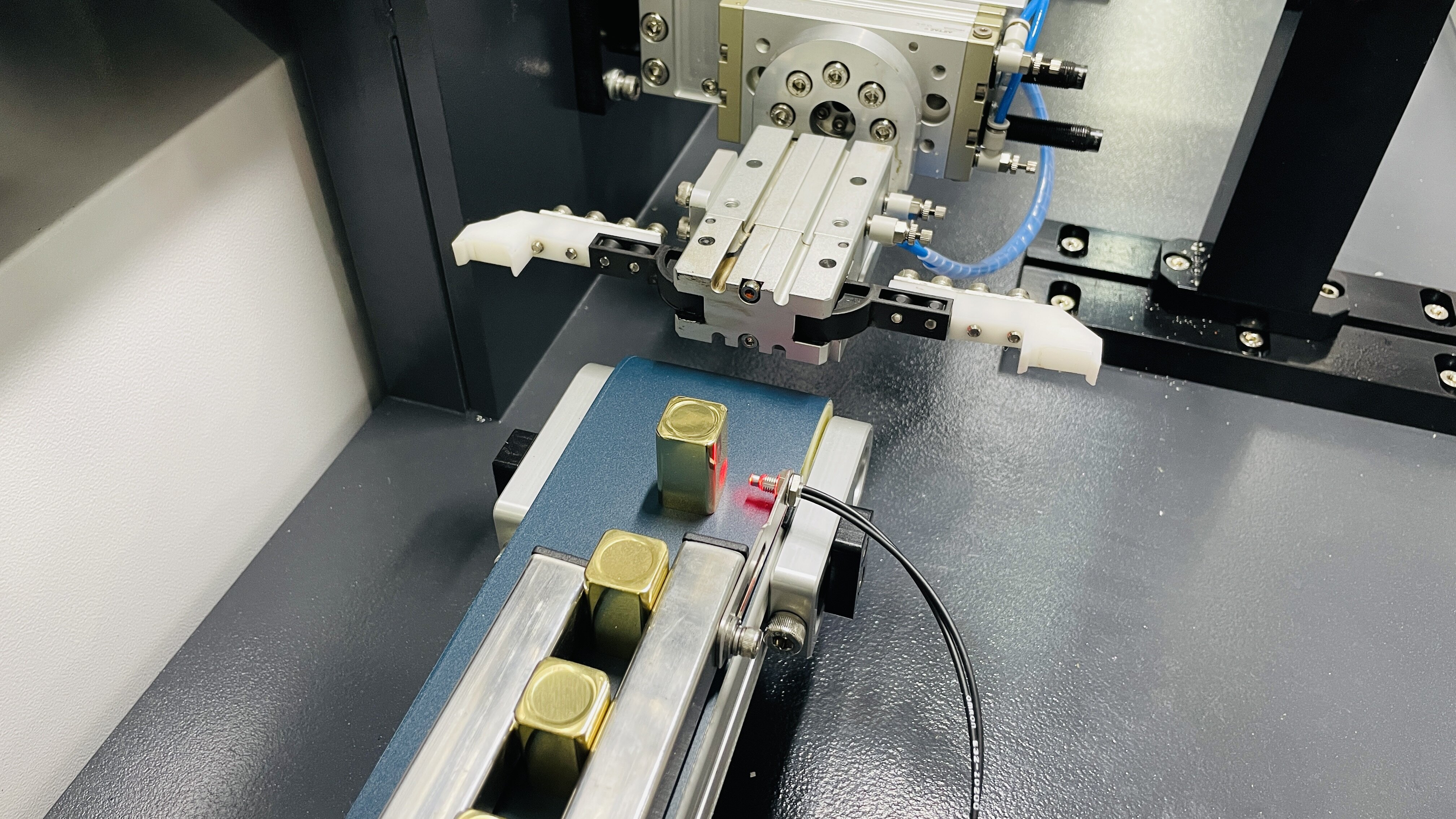

- ●Bottles are fed upright; robotic arms handle loading and unloading.
- ●Positioning method: Mechanical positioning.

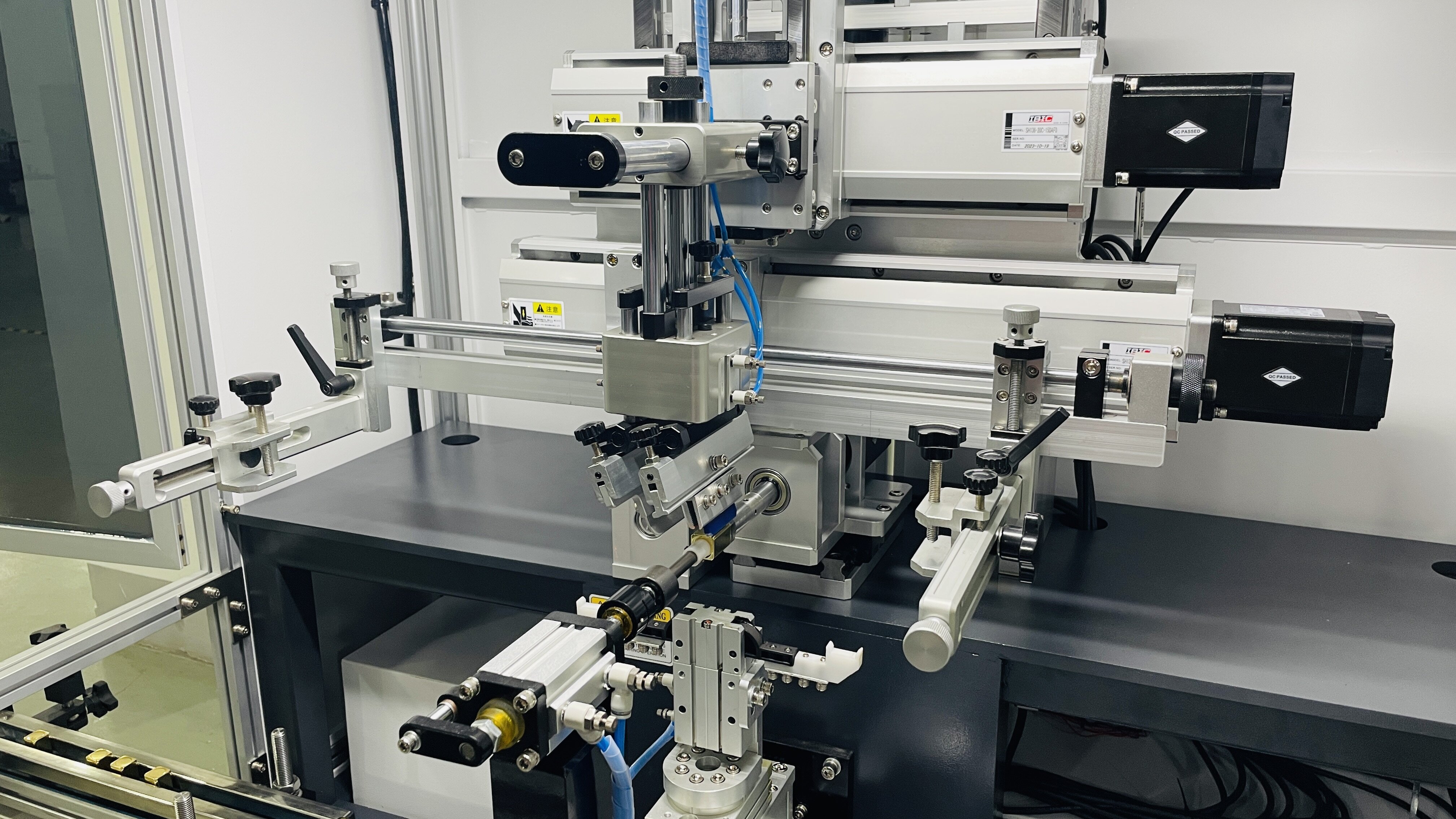

- ●The screen printing unit uses multi-axis servo control to apply local or full-circumference printing on bottles of various shapes.
- ●Ink curing uses water-cooled LED light or tunnel thermal curing.
技术参数 TECHNICAL PARAMETERS
| 型号 Model | YC-AS/1 | ||||
| 最大丝印面积 Max. Screen Printing Area | 250mm×180mm | ||||
| 最大丝印网框尺寸 Max. Screen Frame Size | 450mm×250mm | ||||
| 承印物尺寸范围 Min. and max. Substrate Size | 直径 Diameter：20mm-80mm 长度 Length：40mm-200mm | ||||
| 最快印刷速度 Max. Printing Speed | 圆形 cylindrical：40pcs/min* 椭圆、方形 Oval or Flat：30pcs/min* | ||||
| 定位方式 Register | 机械定位 Mechanical Positioning | ||||
| 气源要求 Compressed Air Pressure | 6 bar（75L/min） | ||||
| 电源要求 Power Requirement | 220V 50Hz 8KW* | ||||
| 机器重量 Weight | 680KG | ||||
